Machine Center

Description

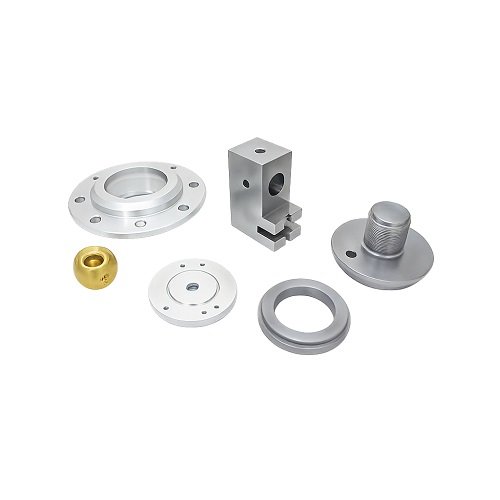

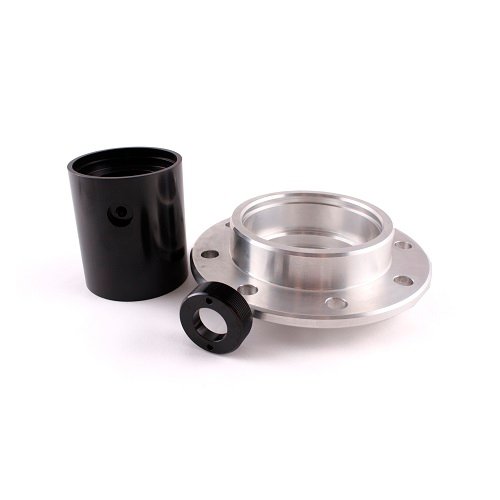

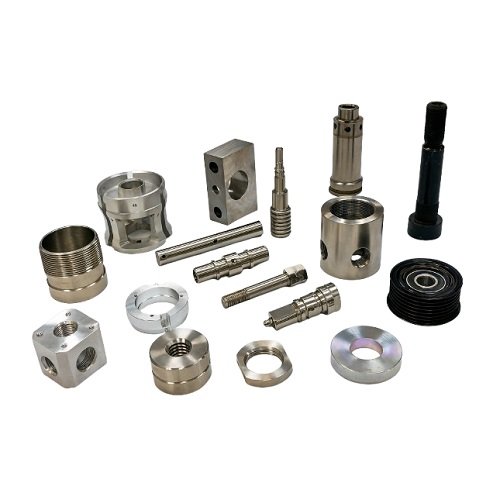

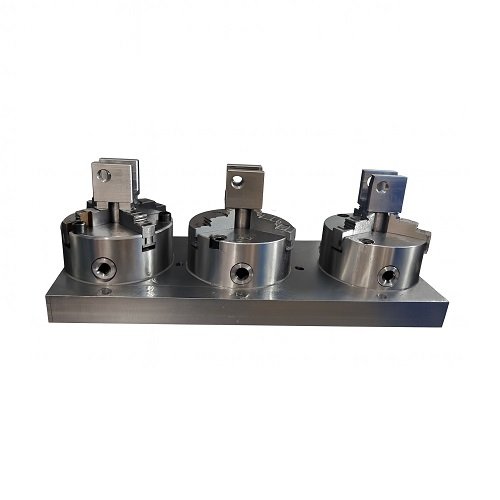

Our advanced Multi-Axis Machining Centers are specifically engineered to handle components with complex geometries and stringent precision requirements. These machines integrate capabilities such as milling, drilling, reaming, and tapping, allowing for the completion of multiple processes in a single setup. This significantly shortens production cycles and minimizes errors caused by multiple fixturing.

Material
Material Specifications
Carbon Steel 1215 • 1215MS • 12L14 • 1144 • C1008 • C1010 • C1015 • C1018 • C1020 • C1022 • C1035 • C1040 • C1045 • C1050 • GB#10 • GB#15 • GB#18 • A • GB#20 • GB#35 • GB#45 • SS400 • Q215 • Q235 • A3 • SPCC • S15C • S20C • S45C • SAE 1020…
Alloy Steel 42CrMo • 42CrMo4 • 42CrMoS4 • 35CrMo • 20CrMo • 40Cr • 20Cr • 4140 • SCM435 • SCM440 • SCM415 • SCM420 • SNCM220 • 35ACR • Q345 • 65Mn • GCr15 • 52100
Stainless Steel 301 • 302 • 303 • 303Cu • 304 • 304L • 316 • 316L • 316F • 430 • 430F • 416 • SUS420J2 • SUS630
Aluminum Alloys 2011 • 2024 • 6082 • 6060 • 6061 • 6063 • 6082 • 7075…
Copper / Bronze T2 (C1100), C11000 • C65100 • C91700…
Brass C3604 • C36000 • C3771 • C2600 • C2700 • C2680 • C2801 • H59 • H62 • H65 • HPb59-1 • HPb63-3 • 26000 • 27000…
Cast Iron HT250…
Capacity

Machining & Forging+Machining
Diameter:0.50 – 250 mm
Length:1.50 – 800 mm

Machine Center
800L*450W*500H mm

Surface treatment

Zinc (White / Blue / Black / Yellow), Nickel, Chrome, Zinc Nickel, Tin , Passivation

Phosphate, Black Oxide, Painting, E-coating (KTL), Geomet

Anodizing (Transparent / Natural), Hard Anodizing (Hard Black/Gray)

Electropolishing, Mirror Polishing, Sandblasting

Heating Treatment

Hardening

Induction Hardening

Quenching+ Tempering(QT) Property Class 8.8、9.8、10.9、12.9

Carburizing (Case Hardening)

Carbonitriding

Salt Bath Nitrocarburizing, N+C (QPQ)

Nitriding

Solution Annealing

Stress Relief Annealing

Hydrogen De-embrittlement (HDE)
